Uncompressed 4:4:4, High Resolution, High Framerate, High Bitdepth - the key features of our B8 series video servers. Up to 32K media resolution, 30Bit color depth, High Framerate, 2D or 3D playback with one or multiple units, frame- and genlocked for perfect synchronous running video channels. Integrated image warping and edge blending allow perfect projection on any surface.
The BRAINSALT B8 Series is a complete range of video servers with an internal bandwidth for up to 17GB/s uncompressed media that can used with up to 32 x 2K or 8 x 4K outputs. All servers support uncompressed video playback in RGB mode with up to 30 Bits color depth. Perfect linear video playback in 2D, 3D, with up to 144 FPS. Various audio options, our camera based calibration system for multi-channel projection and our show control software Conductor completes the B8 Series to one of the most versatile solution available from a single vendor in the market.
| |
Pro Models
|
Entry Models
|

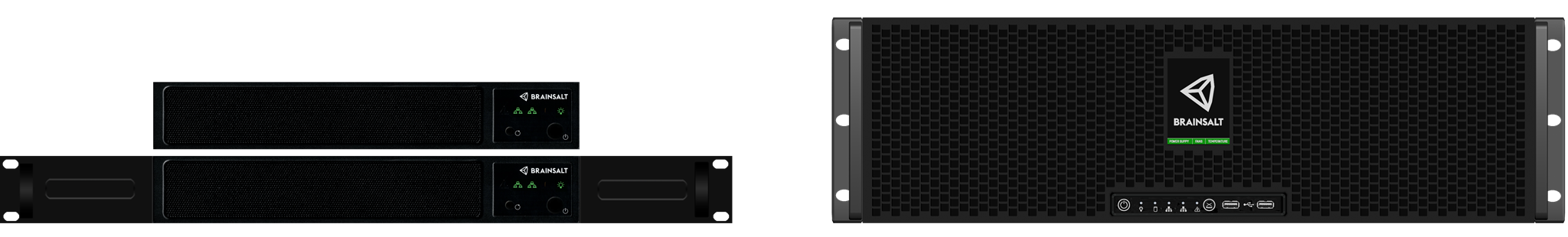

Compact Models (1U)
|
UHD/4K Outputs
|
4 or 8 |
4 |
HD/2K Outputs
|
4 or 8
up to 16 or 32 with optional hardware |
4 |
Max. GB/s
|
up to 17 |
up to 4 |
up to 3 |
Storage
|
Swapable Enterprise SSDs in cage |
Enterprise SSDs |
Enterprise SSD |
OS drive
|
Dedicated |
Dedicated |
Shared with Media |
GPU
|
High End Double Slot |
Single Slot |
Add-On Cards
|
Up to 4 or 2 |
Up to 4 |
None |
Support
|
Premium |
Standard |
At the core of our media servers, you'll find the latest in media management and playback technology, delivering unbeatable performance and versatility, our BX Series Software Suite.
B8 Series Server Configurator
Please find our Online Server selection tool here.
